Product development / Technical design portfolio
From first sketch
to final fit.
I am a product development specialist with extensive expertise in costings and technical design. I possess the technical ability to translate a designer's sketch into a garment that a factory can efficiently produce and ship. My experience covers wovens, full fashion knits, leather, swimwear, denim, and cut-and-sew knits for a wide range of clients, from contemporary runway labels to mass-market programs.
I take full responsibility for the technical lifecycle of a product, including:
- Writing comprehensive specs and grading sizes.
- Managing all fit rounds.
- Ensuring every quarter-inch is held to strict tolerance.
5
case studies, real tech packs
36
points of measure on one jean
5
fit rounds, proto to ship
25+
Pantone refs on one cardigan
Selected work
Five garments, documented the way they were actually made.
Not lookbook shots, but the working documents: annotated sketches, graded specs, fit audits and bills of materials, made browsable instead of buried in PDFs.

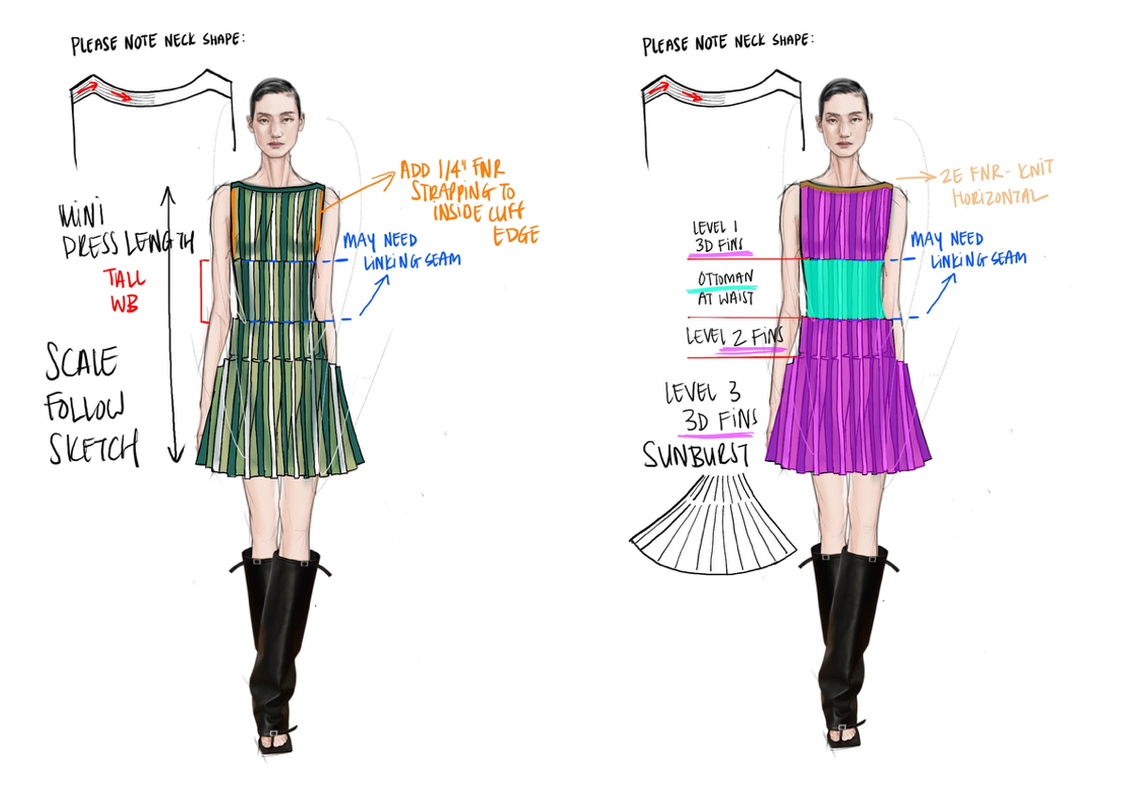

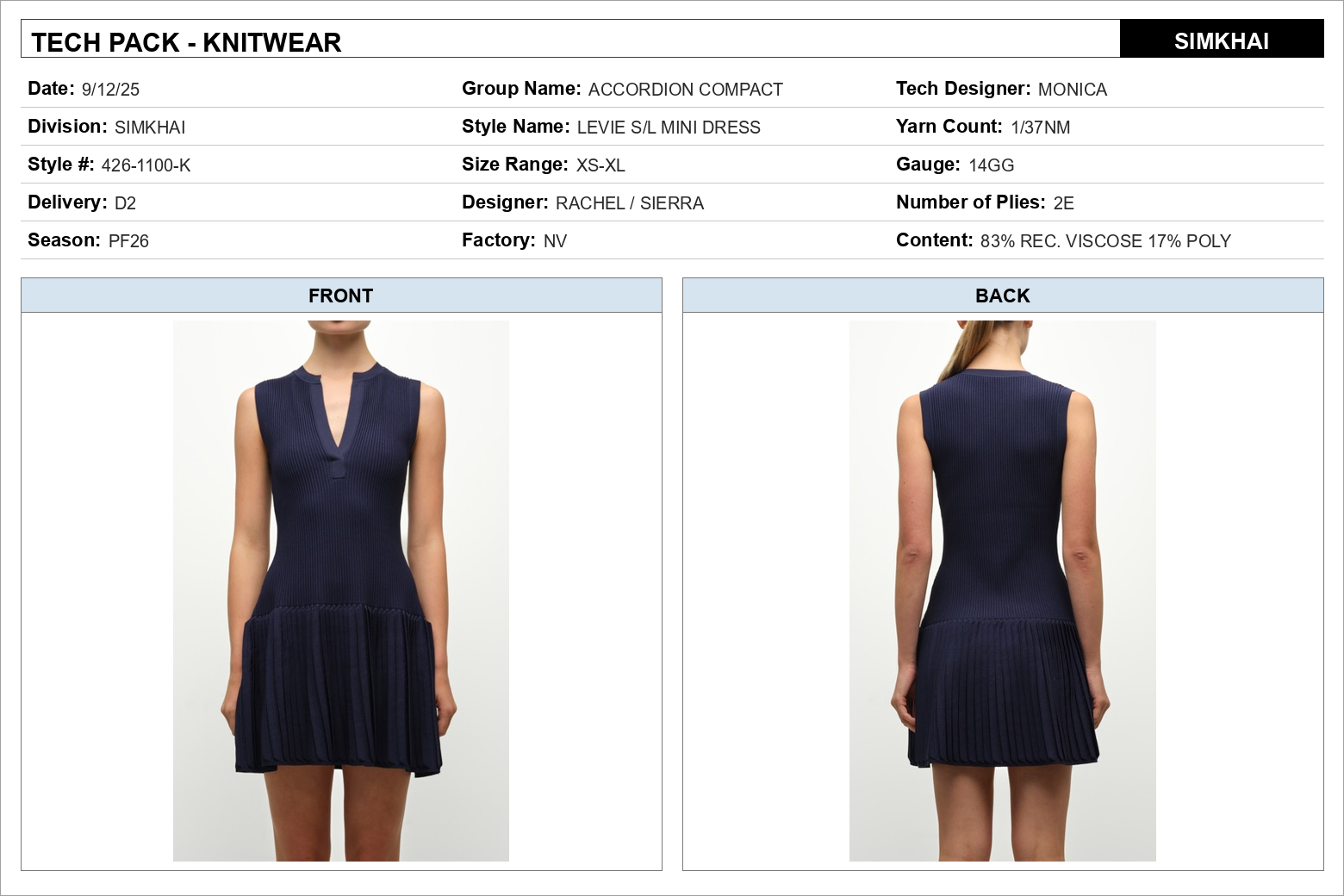

SIMKHAI
Pre-Fall 2026
Levie S/L Mini Dress426-1100-K
An accordion-compact knit engineered through five fit rounds: 3D fins, ottoman transfer stitches and a sunburst skirt taken from illustration to approved TOP.
Knitwear · Dress · Open case study →

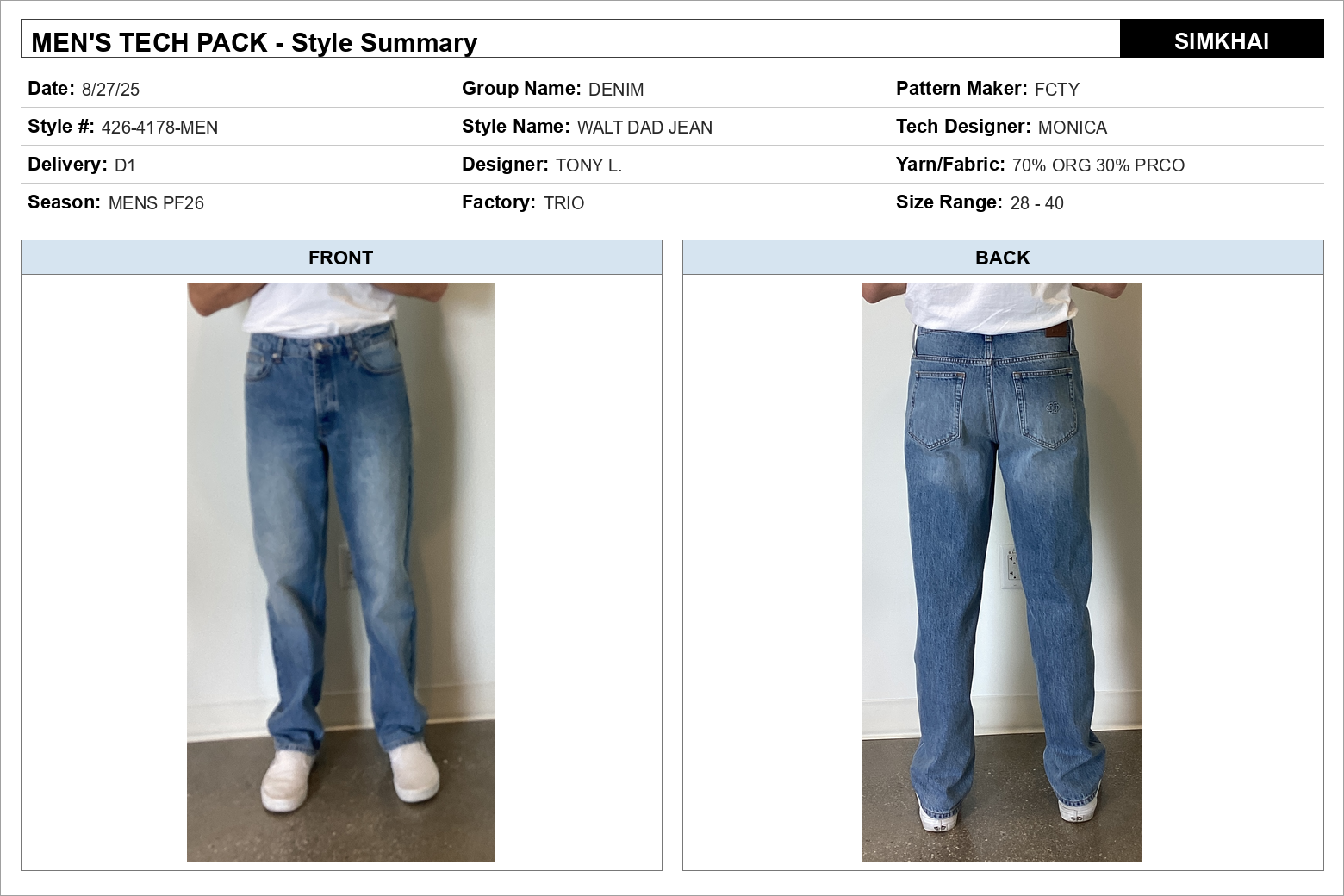

SIMKHAI
Men's Pre-Fall 2026
Walt Dad Jean426-4178-MEN
A men's dad jean in rigid organic and recycled indigo, graded across ten waist sizes and pushed through five rounds of wash-aware pattern correction to bulk approval.
Denim · Men's · Open case study →
NO! Jeans

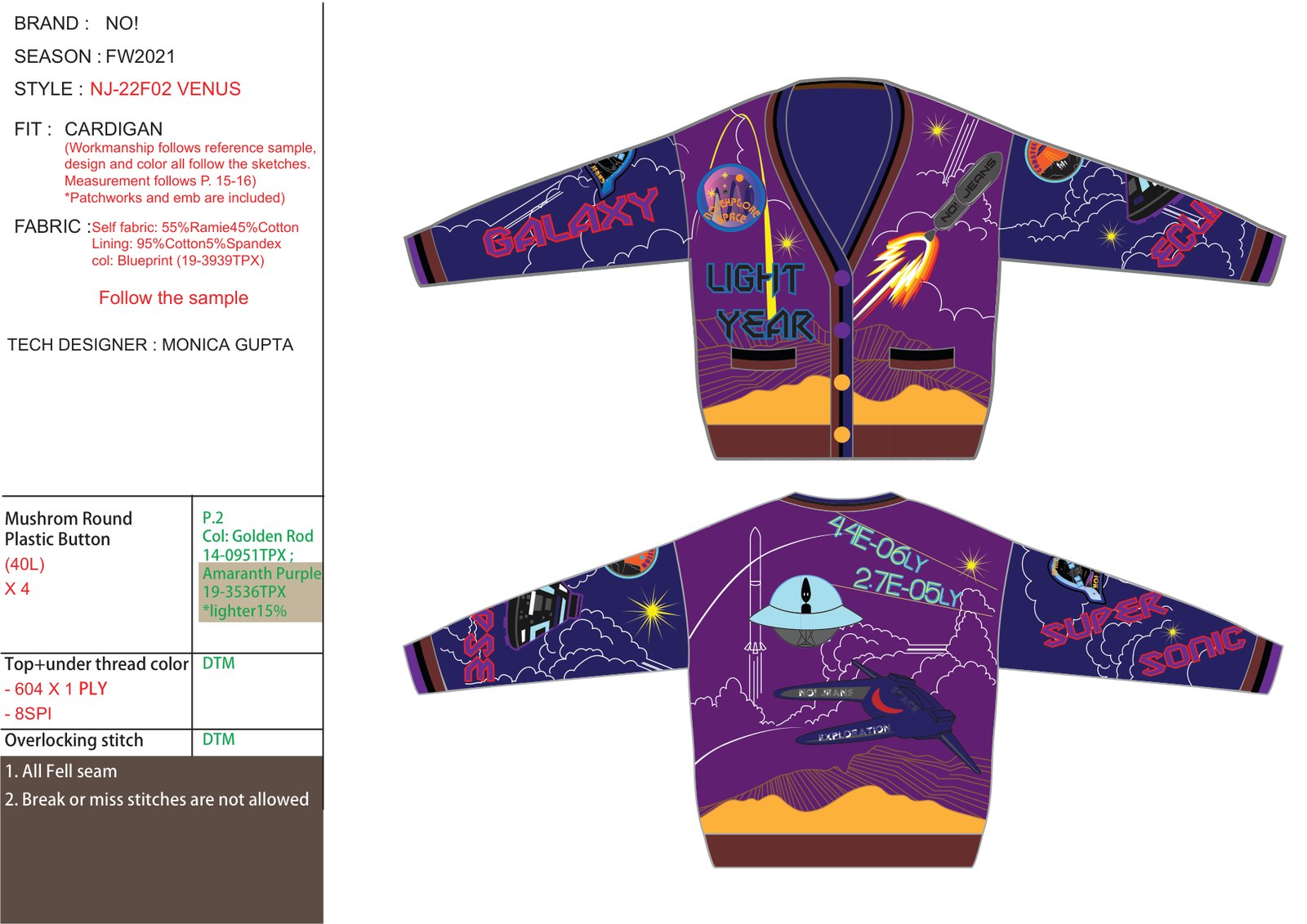

Fall/Winter 2021
Venus CardiganNJ-22F02
A space-exploration cardigan carrying 40+ Pantone-matched yarns, patchworks, badges and embroideries, specified panel by panel so a factory could actually build it.
Knitwear · Statement piece · Open case study →

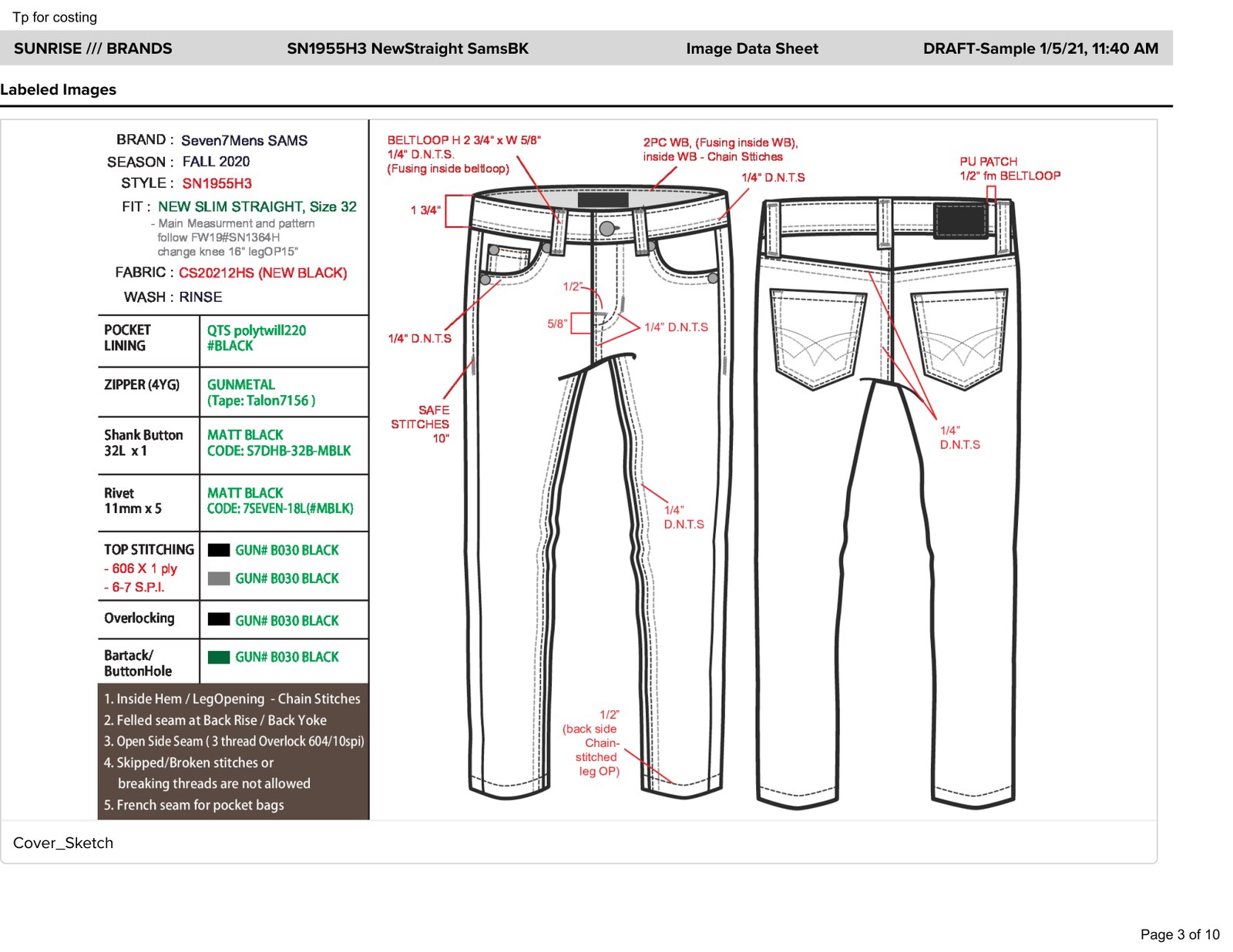

Seven · for Sam's Club
Fall 2020
NewStraight 4-Way Stretch JeanSN1955H3
A mass-market men's jean measured to 36 points of spec. The PP fit sample passed to top of production on the second round.
Denim · Men's · Open case study →

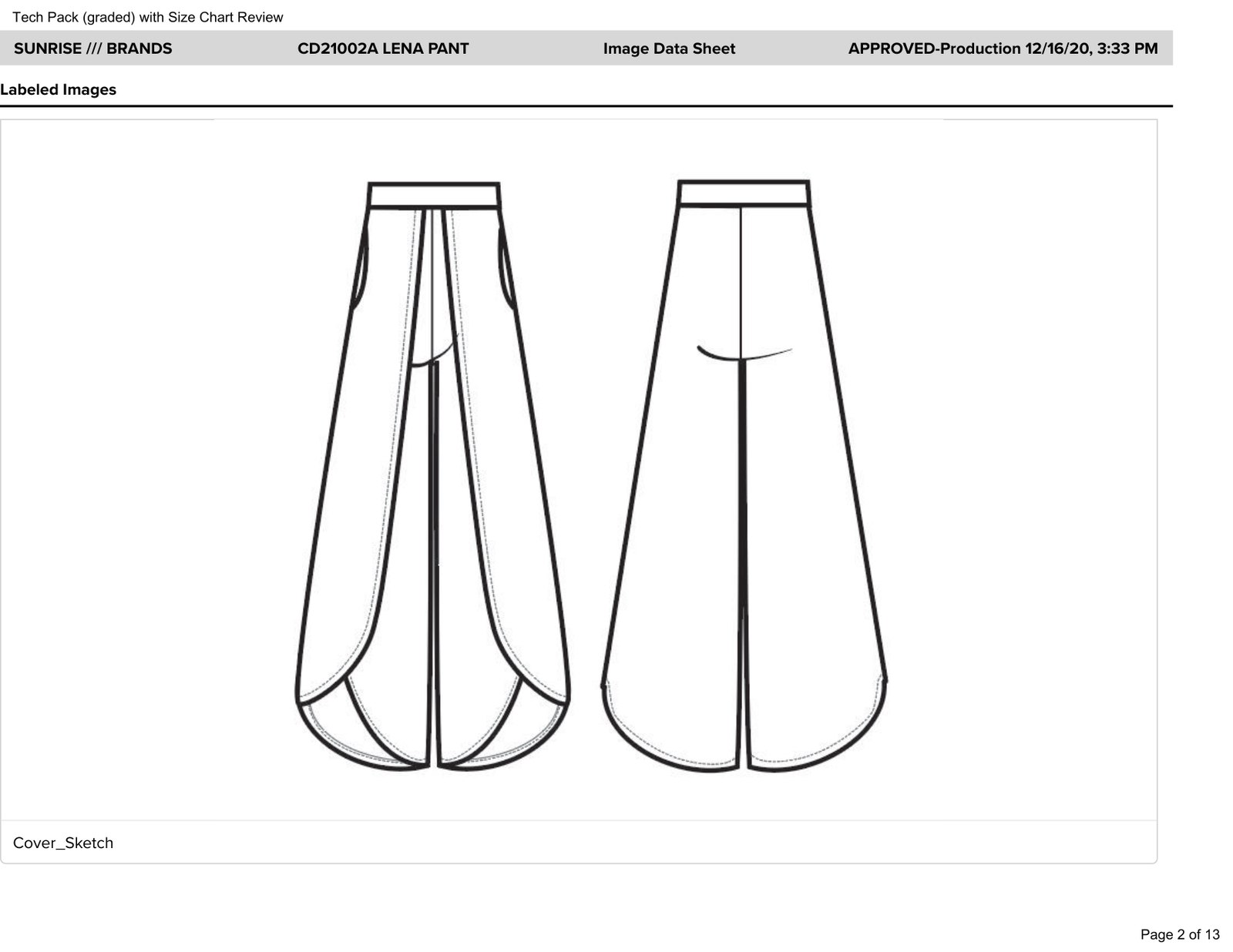

Coldesina
Summer 2021
Lena PantCD21002A
A tulip-front palazzo pant graded XS–XL and approved for production, with 20 points of measure engineered around a curved overlap that has no straight lines to measure from.
Knit bottoms · Missy · Open case study →
Process
A garment isn’t designed once. It’s designed five times.
Every case study on this site moves through the same gauntlet. The craft of technical design is holding the original intent steady while the garment passes through it.
01
Development
Translate the sketch into an engineering brief: stitches, seams, yarns, target specs and reference styles a factory can act on.
02
Proto
First physical sample. Silhouette decisions get made here: what the drawing promised versus what the fabric will actually do.
03
SMS / Fit
Salesman samples and fit rounds on a live model. Every deviation is measured against tolerance and dispositioned in writing.
04
PPS
Pre-production sample in real fabric and wash. The last chance to correct before money is cut in bulk.
05
TOP
Top of production. Audit the first units off the line, bring strays back to spec, approve to ship.
Knitwear engineering
Stitch programs, gauge & yarn specs, graded knit specs for SIMKHAI and NO! Jeans
Denim & wovens
Construction packages, wash standards, 36-point fit audits for Seven and Sam's Club
Fit & grading
Proto → SMS → PPS → TOP; tolerance-driven size chart reviews across XS–XL and 28–44
Production handoff
BOMs, trim & label systems, packaging specs, costing packs factories can execute
