CLO 3D · Apparel CAD

Garments, before they exist.

3D apparel CAD in CLO: pattern pieces drafted flat, stitched and simulated on the avatar with true fabric behavior, then rendered before a single sample is cut. Below, an animated collection walkthrough and the full development sheet of a chunky knit raglan sleeve sweater, from pattern pieces and knit texture maps to the final 3D render.

Collection animation

Development sheet

Chunky knit raglan sleeve sweater

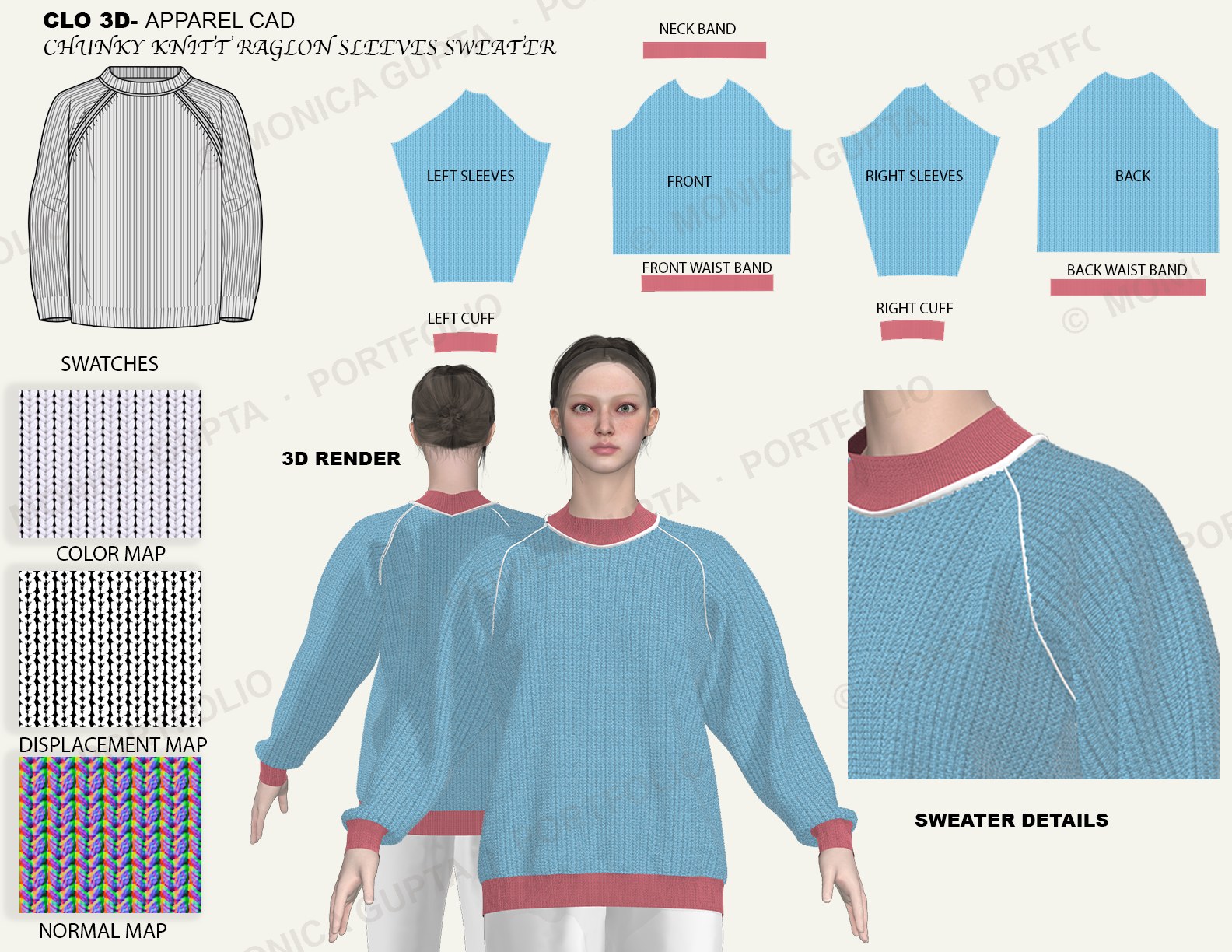

One sheet, the whole build: flat sketch, the six pattern pieces, color, displacement and normal maps that give the knit its depth, and the simulated garment on the avatar with seam detail.

CLO 3D development sheet: chunky knit raglan sleeve sweater with pattern pieces, texture maps and 3D render
